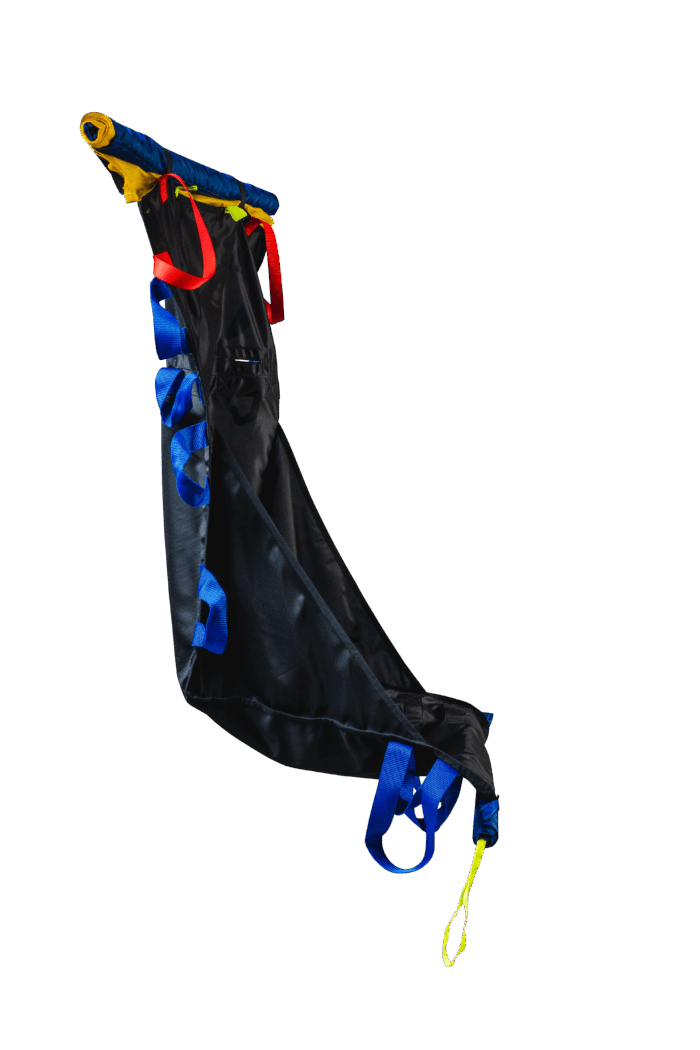

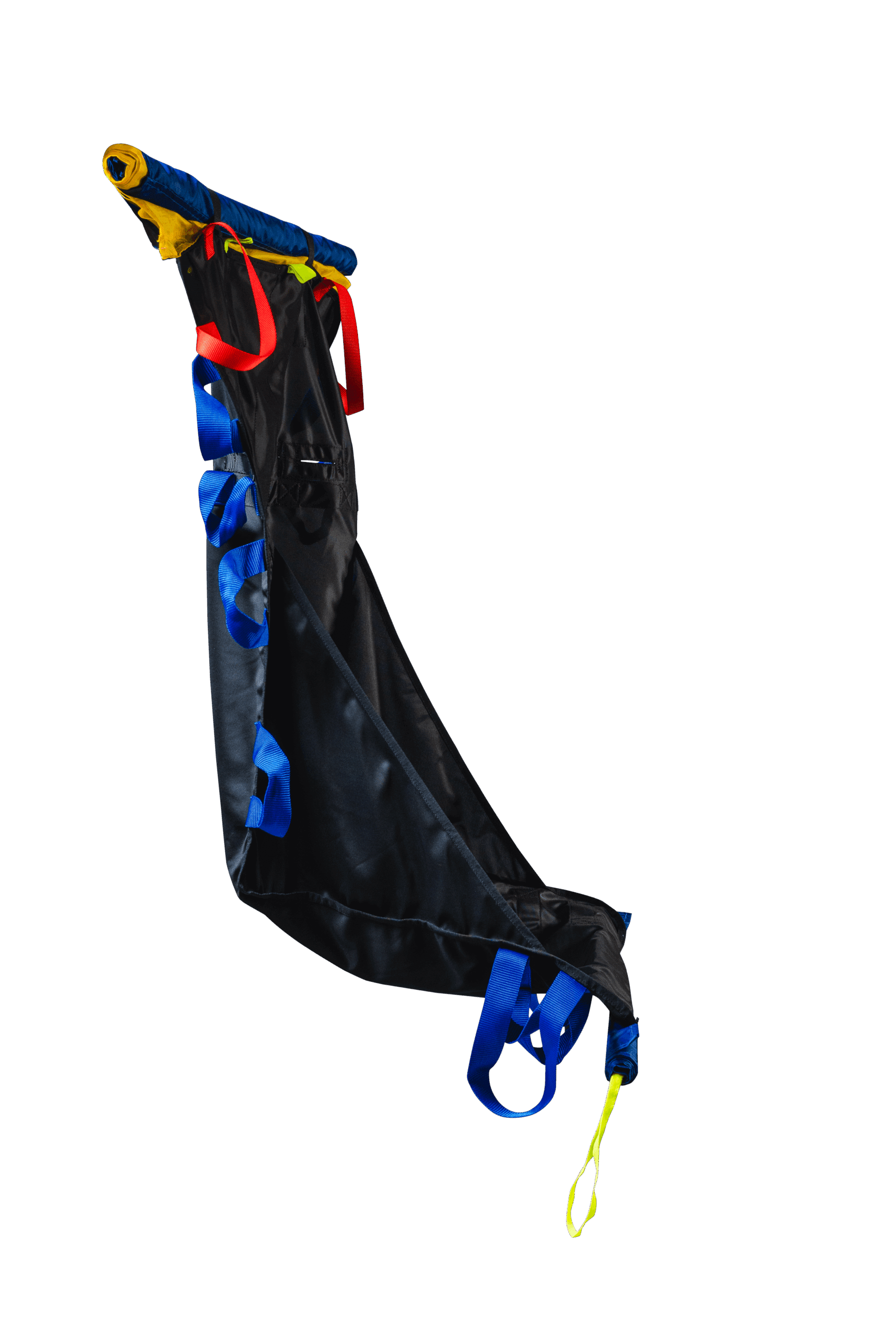

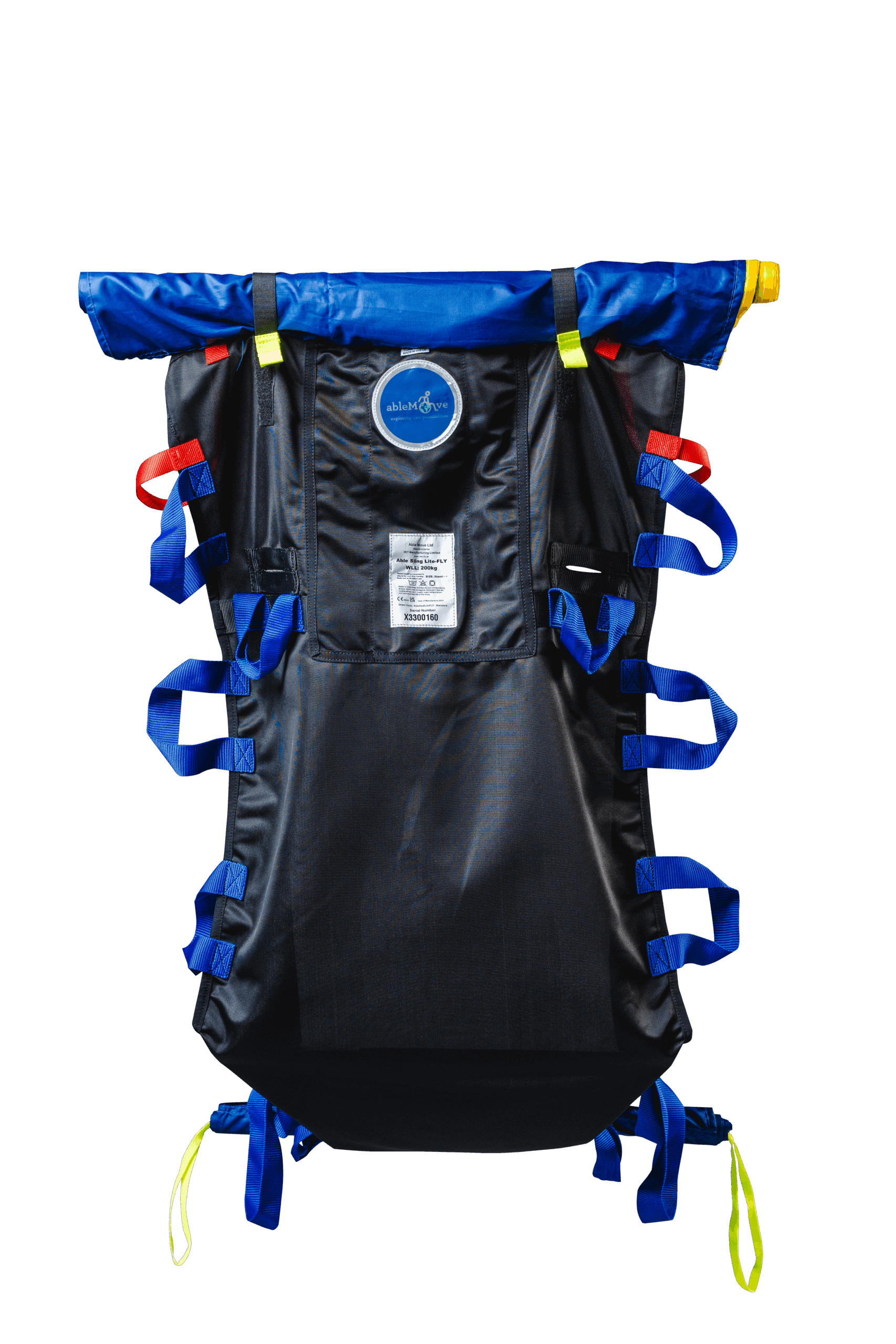

ableSling Lite+ (Airports)

Wheelchair user transfer sling

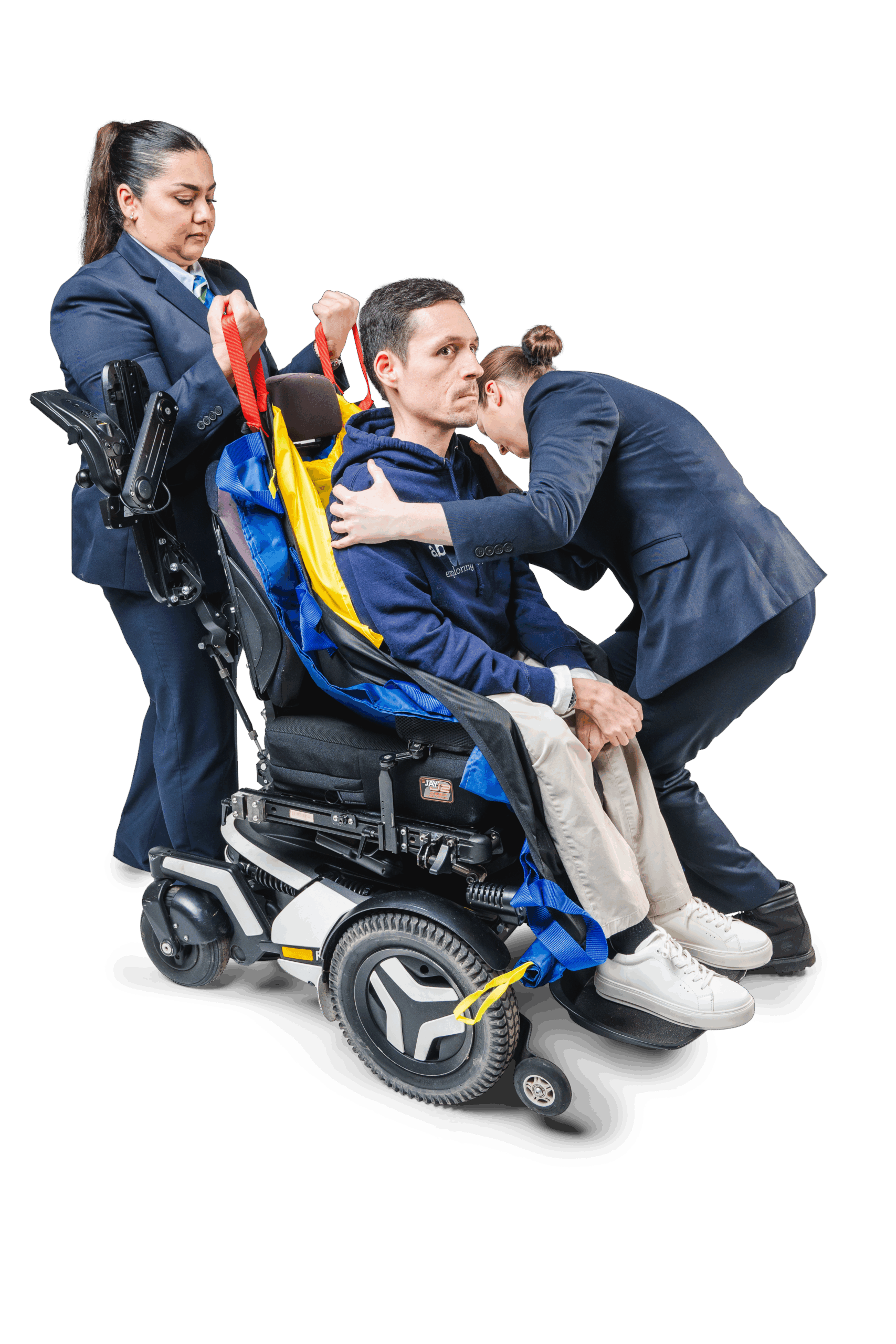

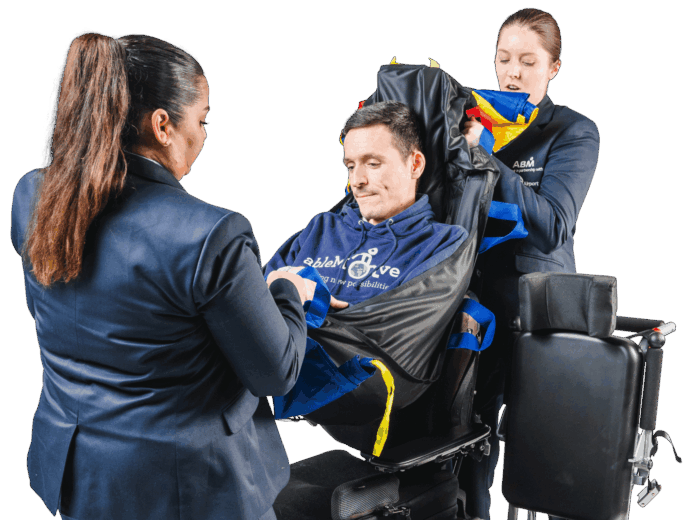

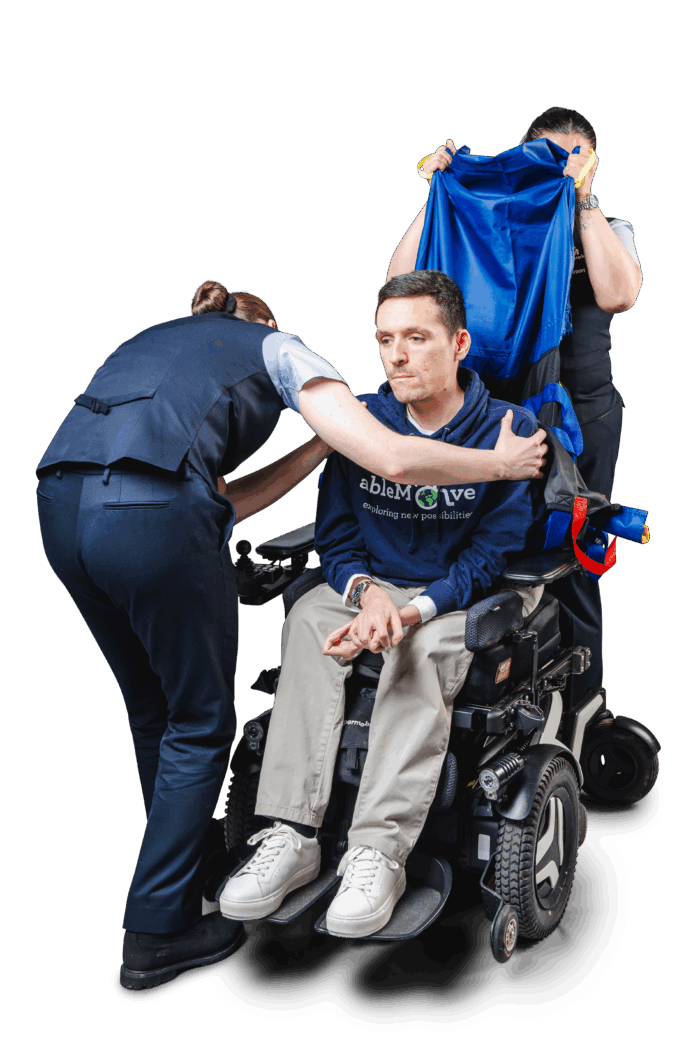

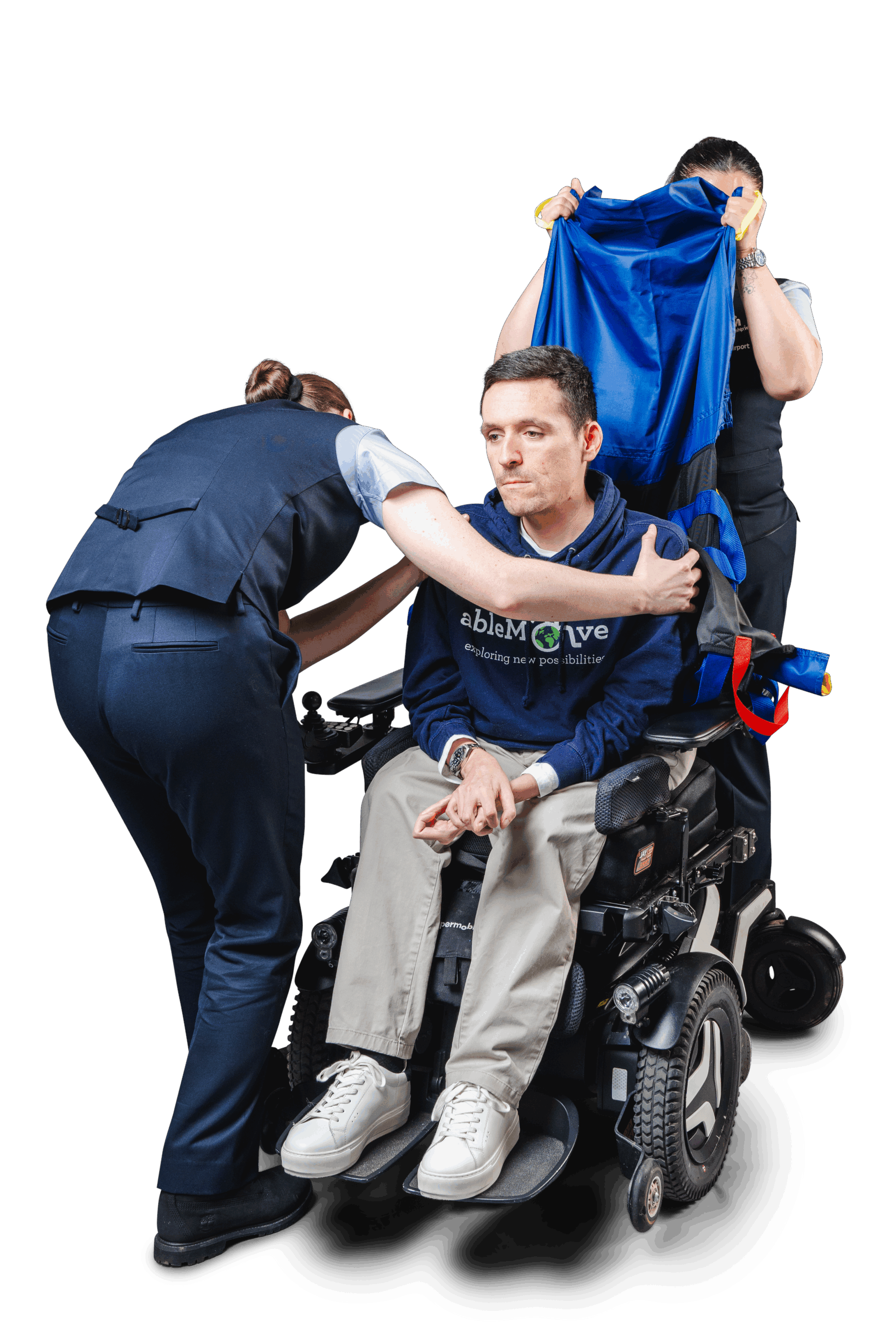

Sling can be inserted whilst keeping the wheelchair or aircraft seat belt secure

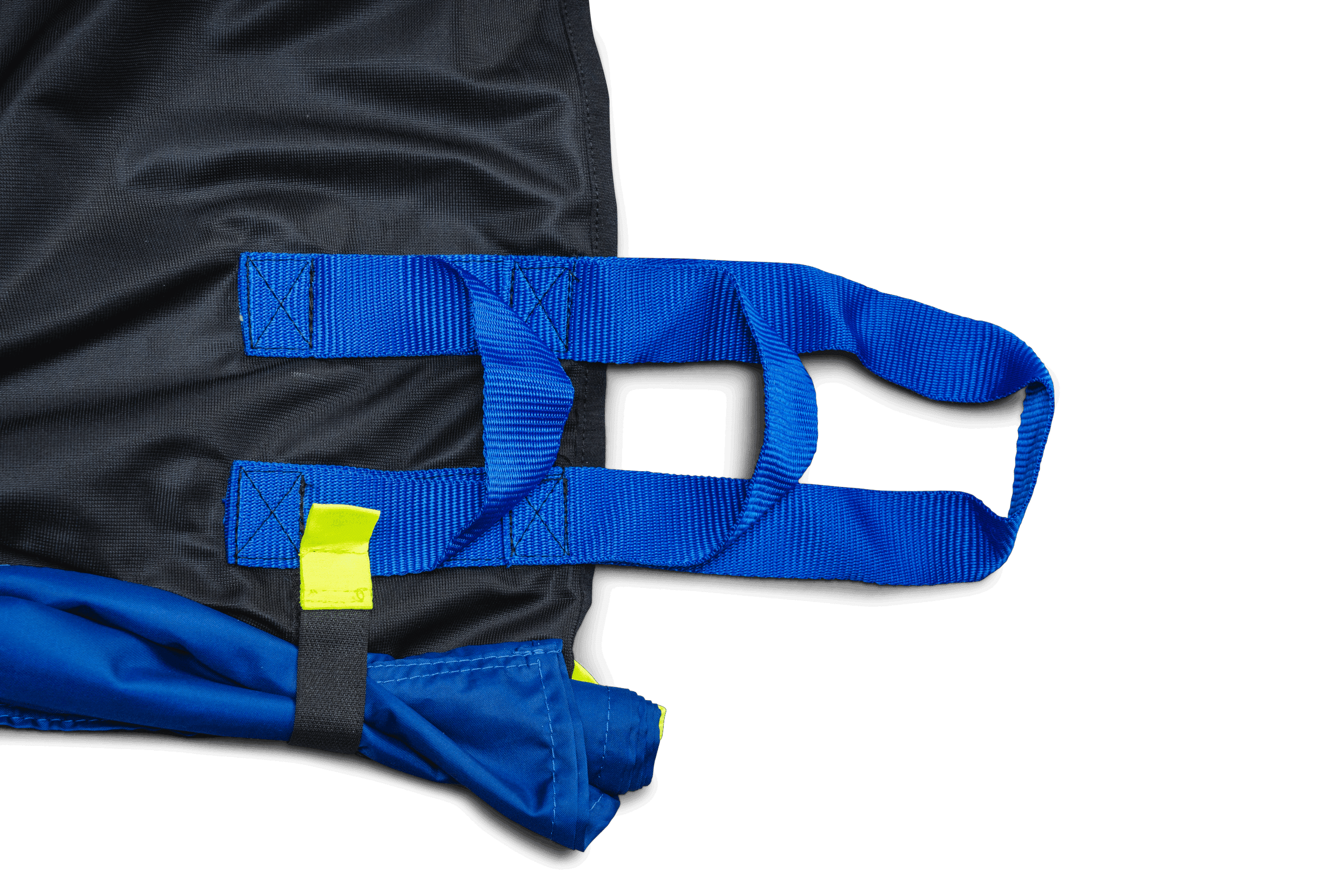

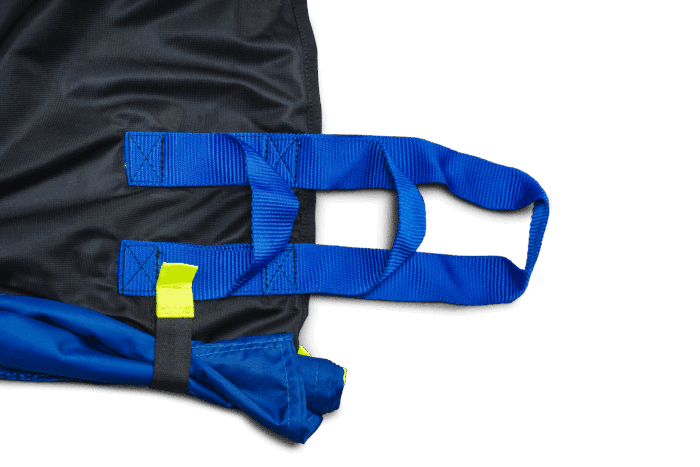

Laddered handles for leverage, depending on the positioning and height of the staff
Fixed slide sheets to assist with inserting and removing
Head support for passengers who cannot support their neck when being transferred

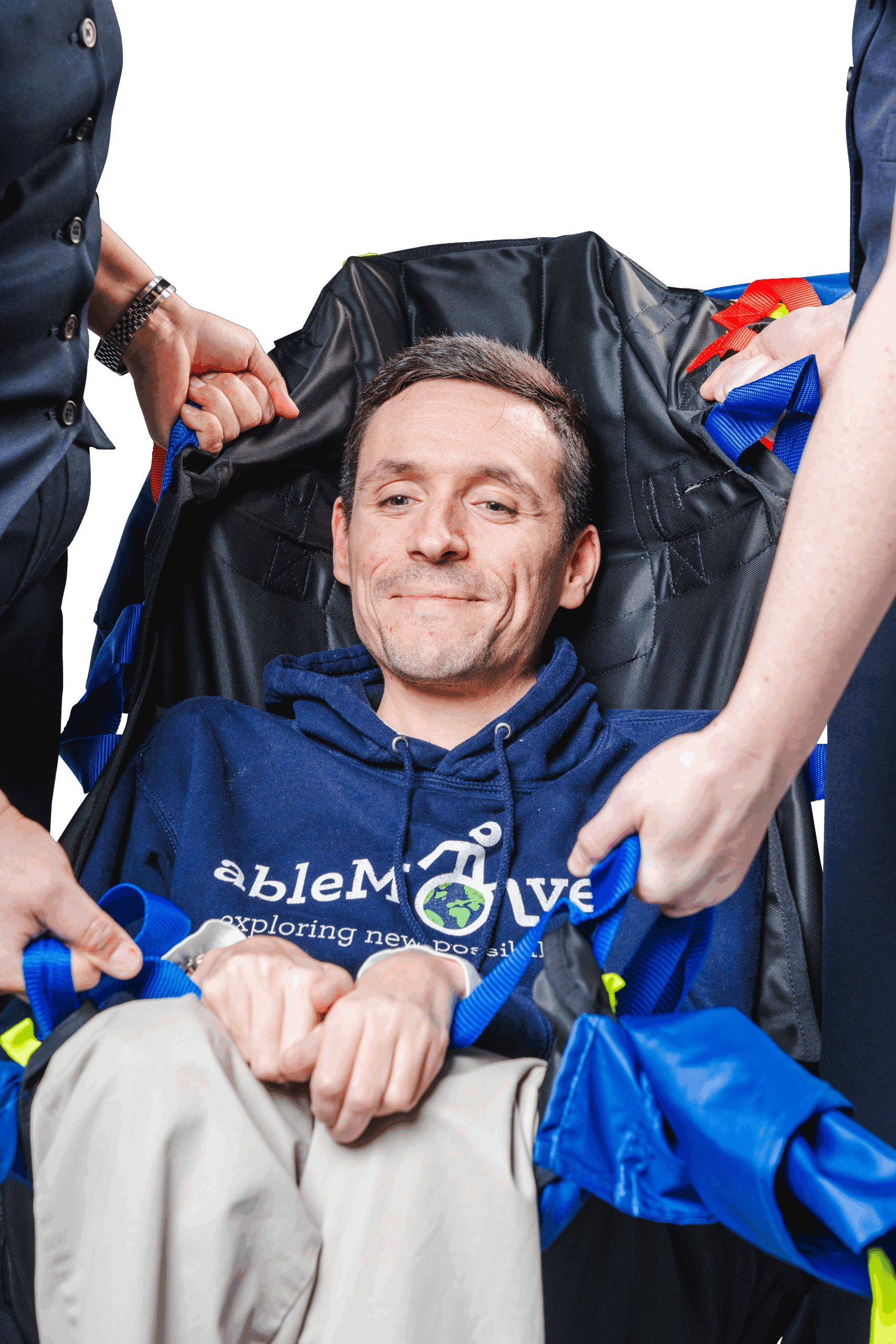

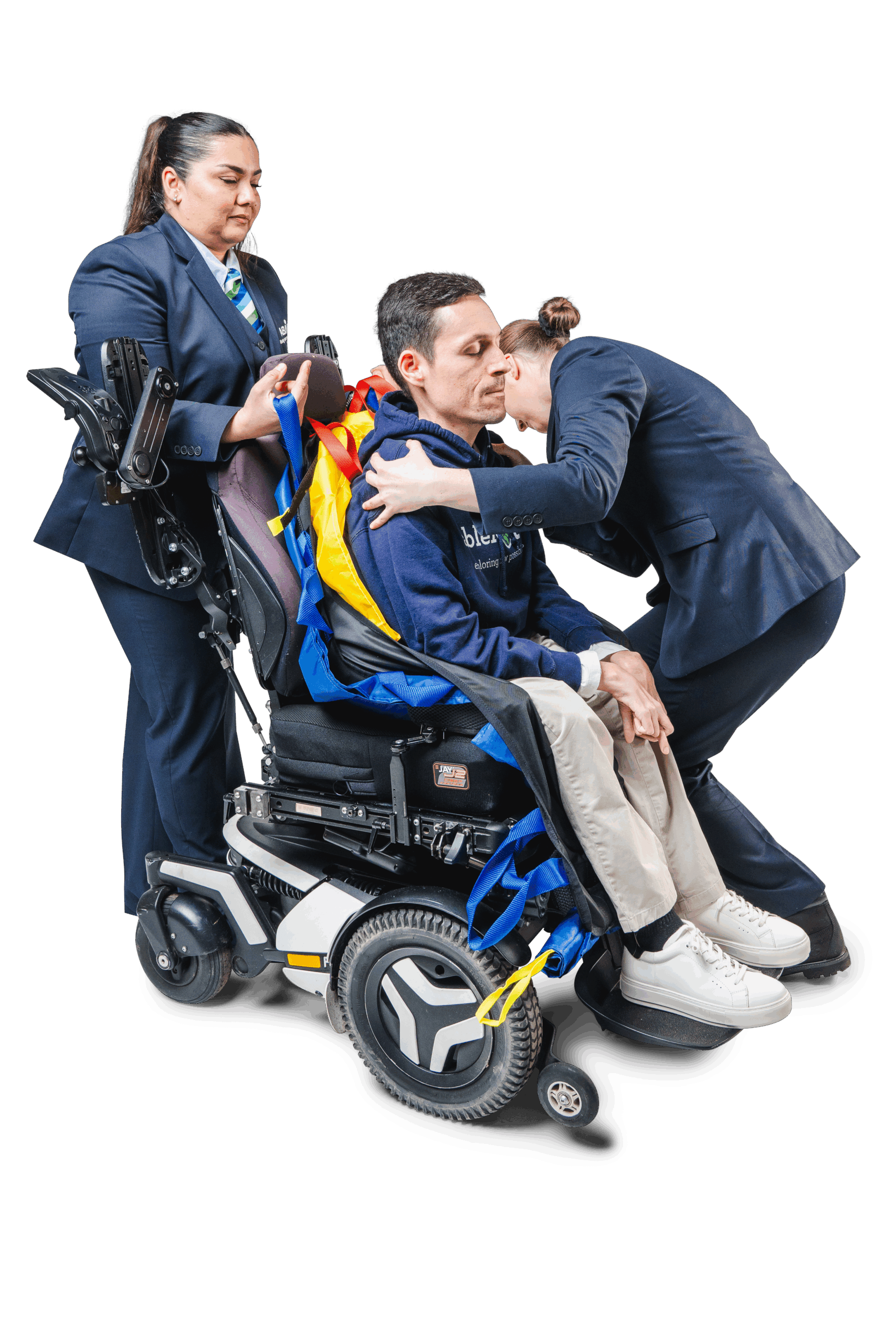

8 handles for manual lifting for front-to-back and side-by-side transfers
1 day CPD accredited train the trainer course delivered by 3ET, including video material for use post training
Safe working load of 150kg

*Note: This sling cannot be used with the Eagle hoist.

This product was designed in close collaboration with 3ET Manufacturing, British Airways, ABM, and Wilson James.

SKU: ABM006 - LTE-1 Categories: ableAviation, ableSling

Reviews (0)

Description

The ableSling Lite+ has been developed specifically for the aviation industry. It facilitates the transfer of wheelchair users to aisle chairs and from aisle chairs to aircraft seats. The sling is available in two sizes: standard and extra-large, to accommodate variations in passenger anatomy.

To support proper usage, we offer a 1-day CPD-accredited “Train the Trainer” moving and handling course with tailored elements for aviation and the use of slings. This course covers the fundamentals of using slings without hoists, ensuring the safe transfer of WCHC passengers. Both practical and theoretical sessions will demonstrate the application and removal of slings, when PUWER and LOLER apply, as well as handling techniques that prioritise the safety and comfort of both the handler and the passenger.

For privacy reasons YouTube needs your permission to be loaded.

Sizing

ableSling

The ableSling comes in 4 sizes:

Small
Medium
Large
X-Large
XX-Large

The most common Child sizes are Small and Medium. The most common Adult sizes are Large and X-Large.

Using the picture below, measure ‘C’ and ‘K’ on the individual.

With those measurements, identify in the tables below (inches or cms) the best size for the individual.

Inches

Sizes	Total Width	Cushion Space – Width (W) x Length (L)	Cushion Thickness	Seat Depth	Back Height
Small	15.5″ – total width	Up to 15″ (W) x 15″ (L)	Up to 3″	15″	17″
Medium	16.5″ – total width	Up to 16″ (W) x 16″ (L)	Up to 3″	16″	18″
Large	17.5″ – total width	Up to 17” (W) x 17” (L)	Up to 3″	17″	19″
X-Large	18.5” – total width	Up to 18″ (W) x 18″ (L)	Up to 3″	18″	20″
XX-Large	21.5” – total width	Up to 20″ (W) x 20″ (L)	Up to 3″	21″	20″

CMS

Sizes	Total Width	Cushion Space – Width (W) x Length (L)	Cushion Thickness	Seat Depth	Back Height
Small	39.37cms – total width	Up to 38.10cms (W) x 38.10cms (L)	Up to 7.62cms	38.10cms	43.18cms
Medium	41.91cms – total width	Up to 40.64cms (W) x 40.64cms (L)	Up to 7.62cms	40.64cms	40.64cms
Large	44.45cms – total width	Up to 43.18cms (W) x 43.18cms (L)	Up to 7.62cms	43.18cms	48.26cms
X-Large	46.99cms – total width	Up to 45.72cms (W) x 45.72cms (L)	Up to 7.62cms	45.72cms	50.80cms
XX-Large	54.61cms – total width	Up to 53.34cms (W) x 53.34cms (L)	Up to 7.62cms	53.34cms	50.80cms

Still unsure, you can contact us:

Using our live chat in the bottom right-hand corner and one of the team will be available to help.
By email at sales@ablemove.co.uk
Through our contact form, here

ableSling Lite

Using the picture above when measuring for the ableSling Lite, measure ‘C’, ‘G’ and ‘F’ on the individual.

With those measurements, identify below the best size for the individual.

Sizes
- Extra Small – Very small child
  - Top of the headrest to the bottom of the back – up to 21.65″ or 55cm
  - Seat width – up to 14.0″ or 36cm
  - Seat depth – up to 14.0″ or 36cm
- Medium – Large Child or Very Small Adult
  - Top of the headrest to bottom of the back – up to 28.34″ or 72cm
  - Seat width – up to 17.7″ or 45cm
  - Seat depth – up to 17.7″ or 45cm
- Adult – Standard
  - Top of the headrest to bottom of the back – up to 31.1″ or 79cm
  - Seat width – up to 19.7″ or 50cm
  - Seat depth – up to 19.2″ or 49cm
- Adult – XL
  - Top of the headrest to bottom of the back – up to 35″ or 89cm
  - Seat width – up to 22.5″ or 57cm
  - Seat depth – up to 21.5″ or 54cm

Still unsure, you can contact us:

Using our live chat in the bottom right-hand corner and one of the team will be available to help.
By email at sales@ablemove.co.uk
Through our contact form here

ableHarness

Using the picture above when measuring for the ableHarness, please measure ‘B’ on the individual.

Standard Version
- Maximum Chest Circumference – 86cms to 110cms
Child Version
- Maximum Chest Circumference – 66cms to 86cms

Still unsure, you can contact us:

Using our live chat in the bottom right-hand corner and one of the team will be available to help.
By email at sales@ablemove.co.uk
Through our contact form here

ableDry

Powered Wheelchair Version
- This size will ensure the back length of the ableDry covers the entire wheelchair back – max length is 65cms or 25.5″
- Width – will cover the majority of powered wheelchair sizes (except bariatric)
Manual Wheelchair Version
- This size will ensure the back length of the ableDry covers the entire wheelchair back – max length is 35cms or 13.7″
- Width – will cover the majority of manual wheelchair sizes (except bariatric)

Still unsure, you can contact us:

Using our live chat in the bottom right-hand corner and one of the team will be available to help.
By email at sales@ablemove.co.uk
Through our contact form here

ableStrap

Small
- Leg circumference – 21″ – 31″ inches or 53.5 cms – 79cms
Standard
- Leg circumference – 31″ – 41″ inches or 79 cms – 104cms
Leatherette
- One size fits all

Still unsure, you can contact us:

Using our live chat in the bottom right-hand corner and one of the team will be available to help.
By email at sales@ablemove.co.uk
Through our contact form here

FAQs

Do you do a children’s ableDry version?Josh Wintersgill2021-05-05T10:13:12+00:00

Do you do a children’s ableDry version?

Our Low Back manual version of our ableDry (wheelchair cover) will be the best option for a child.

Can the ableSlings be used for purpouses other than just flying?Josh Wintersgill2021-04-14T08:50:45+00:00

Can the ableSlings be used for purpouses other than just flying?

Absolutely yes – we know from feedback from customers that the ableSling and ableSling Lite can be used for a whole variety of activities such as getting into a beach wheelchair buggy, getting onto a pool hoist with or without the use of a hoist, getting in and out of vehicles, helping get onto a boat, accessing a hot air-balloon, helicopter and so much more. The possibilities are limitless! The ableSling Lite is very good for water based activities as it is able to dry very quickly due to the design and less material than other similar products.

Can I put my own wheelchair cushion into the ableSling?Josh Wintersgill2021-04-14T08:53:22+00:00

Can I put my own wheelchair cushion into the ableSling?

Yes, if your wheelchair cushion is less than 3″ thick, falls within the width and length measurements of the ableSeat size you have selected, and has a soft base (so the cushion is flexible).

Please note – If you plan to fly with your ableSeat and the wheelchair cushion you are inserting has a firm base (not flexible), we advise you to check with the airline what the aisle width of the aircraft is in which you are travelling, prior to travel. If the aisle width is only 17″ wide and your cushion is 18″ wide with a firm base, you will not be able to go down the aisle on the aisle chair.

What sizes do you have and how do I measure for the right size?Josh Wintersgill2021-04-14T08:54:40+00:00

What sizes do you have and how do I measure for the right size?

The ableSling comes in 4 sizes:

Small
Medium
Large
X-Large

*Cushion space – this is max space for the insert of a cushion inside the ableSling
**Cushion thickness – this is max thickness of a cushion that will fit inside the ableSling

Sizes	Total Width	Cushion Space – Width (W) x Length (L)	Cushion Thickness	Seat Depth	Back Height
Small	15.5″ – total width	Up to 15″ (W) x 15″ (L)	Up to 4″	15″	19″
Medium	16.5″ – total width	Up to 16″ (W) x 16″ (L)	Up to 4″	16″	19″
Large	17.5″ – total width	Up to 17” (W) x 17” (L)	Up to 4″	17″	21″
X-Large	18.5” – total width	Up to 18″ (W) x 18″ (L)	Up to 4″	18″	21″

Sizing chart and measuring:

Using the picture above, measure ‘C’ and ‘K’ in inches of the person that is going to be using the ableSling.
Using those measurements, identify below the best sized ableSling.

If C and K are both less than 15.5″ – select small
If either C or K are 0.5″ higher than 15.5″ – select medium
If C and K are both less than 16.5″ – select medium
If either C or K is 0.5″ higher than 16.5″ – select large
If C and K are both less than 17.5″ – select large
Anything from 17.5″ up to 19.5″ – select x-large

If you are still unsure, please contact us at sales@ablemove.co.uk and we can help further.

Does the ableSeat or ableSeat Lite come with a headrest/support?Josh Wintersgill2021-04-14T08:55:40+00:00

Does the ableSeat or ableSeat Lite come with a headrest/support?

ableSeat – No

ableSeat Lite – Yes: please note, a headrest comes on all on versions of the ableSeat Lite and is non-detachable.

Do you do a children’s size for the ableSling?Josh Wintersgill2021-04-14T08:56:52+00:00

Do you do a children’s size for the ableSling?

Our smallest size is the best option for children, however it is always best to check the measurements. The measurements for our small ableSling will cater for a cushion up to 15″ in width and length, with back support length up to 21″.

We can do bespoke orders for smaller sizes upon request, but these are subject to quotation and time frames can take up to 3-4 weeks for delivery. Please email with your request if you need a bespoke order to – sales@ablemove.co.uk
